14-Bit Digitizer for PCIe Gen-2, 4 Channels 125 MS/s up to 8 GS Memory
Order-No.: OVE-834-009 Series/Model: Octave-14 Express / CompuScope 8349
2 Channel 14-Bit PCIe (x8 Gen-2) Digitizer / Oszilloscope with 125 MS/s Samplingrate per Channel
Main Product Features
- 4 Digitizing Input Channels
- 125 MS/s Maximum Sampling Rate per Channel
- 14-bit Vertical A/D Resolution
- 2 GS (4 GB) to 8 GS (16 GB) Onboard Acquisition Sample Memory
- 100 MHz Input Bandwidth
- Full-Featured Front-End with AC/DC Coupling and 50Ω or 1MΩ Inputs
- Software Control over Input Ranges, Coupling & Impedances
- Ease of Integration with External or Reference Clock In & Clock Out
- External Trigger In & Trigger Out
- Full-Size Single-Slot 8-Lane (x8) PCIe 2.0 Board
- Sustained PCIe Data Streaming at 1 GB/s

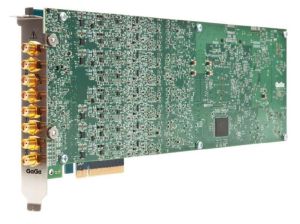

The GaGe Octave Express 83XX CompuScope PCIe digitizer card features 14-bit resolution with sampling rates up to 125 MS/s with true Effective Number of Bits (ENOB) of 11.1-bits with 10 MHz input.
Onboard digitizer sample memory is expandable up to 8 GS (16 GB) and up to 8 Octave Express digitizers can be combined for up to 32 channels in a single system.
Possible transfer speeds in the PCIe slots:
PCI Express (PCIe) x8 (8 Lane) Gen-2 (Version 2.0): 3.1 GB/s
PCI Express (PCIe) x8 (8 Lane) Gen-1 (Version 1.0): 1.5 GB/s
PCI Express (PCIe) x4 4 Lane) Gen-1 (Version 1.0): 1 GB/s
PCI Express (PCIe) x1 (1 Lane) Gen-1 (Version 1.0) 245 MS/s
eXpert Realtime On-Board Options:
- eXpertTM Daten Streaming Stream-to-Analysis
- eXpert DDC (Digital Down Conversion
- eXpertTM MittelwertbildungeXpertTM
- eXpert FFT (Fast Fourier Transform)
- eXpert OCT (Optical Coherence Tomography)
Applications
- Radar Design and Test
- Disk Drive Testing
- Manufacturing Test
- Signal Intelligence
- Lidar Systems
- Communications
- Non-Destructive Testing
- Spectroscopy
- High-Performance Imaging
- Ultrasound Test
