14 Bit Digitizer for PCIe with 8 Channels 125 MS/s up to 8 GS Memory

Order-No.OCE-838-009   Series/Model: Octopus-14 Express / CompuScope Express 8389

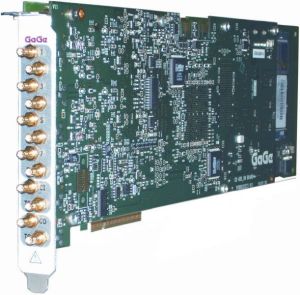

14 Bit, 8 Channel 125 MS/s up 8 GS Memory
Click to enlarge

14 Bit PCI Express Digitizer / Oszilloskopkarten mit 125 MS/s Abtastrate pro Kanal und 2 GS bis 8 GS Speicher

Hauptproduktmerkmale

  • 8 Digitizing Channels
  • 125 MS/s Maximum Sampling Rate per Channel
  • 14-bit Vertical A/D Resolution
  • 2 GS (4 GB) to 8 GS (16 GB) Onboard Acquisition Sample Memory
  • 100 MHz Input Bandwidth
  • Full-Featured Front-End with AC/DC Coupling and 50Ω or 1MΩ Inputs
  • Software Control over Input Ranges, Coupling & Impedances
  • Ease of Integration with External or Reference Clock In & Clock Out
  • External Trigger In & Trigger Out
  • Full-Size Single-Slot 8-Lane (x8) PCIe 2.0 Board
  • Sustained PCIe Data Streaming at 2 GB/s

The GaGe Octopus Express 83XX CompuScope PCIe digitizer board features 14-bit resolution with sampling rates up to 125 MS/s with true Effective Number of Bits (ENOB) of 11-bits with 10 MHz input.

Onboard digitizer sample memory is expandable up to 8 GS (16 GB) and up to 8 Octopus Express digitizers can be combined for up to 64 channels in a single system.

Possible transfer speeds in the PCIe slots:

PCI Express (PCIe) x8 (8 Lane) Gen-2 (Version 2.0): 3.1 GB/s
PCI Express (PCIe) x8 (8 Lane) Gen-1 (Version 1.0): 1.5 GB/s
PCI Express (PCIe) x4 4 Lane) Gen-1 (Version 1.0): 1 GB/s
PCI Express (PCIe) x1 (1 Lane) Gen-1 (Version 1.0) 245 MS/s

eXpert Realtime On-Board Options:

  • eXpertTM Daten Streaming Stream-to-Analysis
  • eXpert DDC (Digital Down Conversion
  • eXpertTM MittelwertbildungeXpertTM
  • eXpert FFT (Fast Fourier Transform)
  • eXpert OCT (Optical Coherence Tomography)

Applications

  • Radar Design and Test
  • Disk Drive Testing
  • Manufacturing Test
  • Signal Intelligence
  • Lidar Systems
  • Communications
  • Non-Destructive Testing
  • Spectroscopy
  • High-Performance Imaging
  • Ultrasound Test



Manufacturer page

http://www.gage-applied.com/

Data Sheet Download

14-Bit Digitizer for PCIe x8 Gen2 with 8 Channels and 125 MS/s per Channel (1.5 MiB)
