16 Bit PCIe Gen-2 Digitizer / Oszilloscope 4 Channel 200 MS/s b. 8 GS Memory

16 Bit PCIe Gen-2 Digitizer 4 Channels 200 MS/s b. 8 GS Memory

2 Channel 16-Bit PCIe (x8 Gen-2) Digitizer / Oszilloscope with 200 MS/s Sampling Rate per Channel

Main Product Features

• 16 bits vertical resolution
• 4 digitizing channels (2 channels alos available)
• 200 MS/s maximum sampling per channel
• 16 bits vertical resolution
• 4 GS or 8 GS on-board acquisition memory
• 65 or 125 MHz bandwidth
• Ultralow distortion (THD < -80 dB)
• Full-size, single-slot PCI Express or PCI card
• Full-featured front-end, with software control over input ranges, coupling and impedances
• Dual-port memory and Data Streaming at up to 3.1 GB/s on PCI Express models
• Ease of integration with External or Reference Clock In and Clock Out, External Trigger In and Trigger Out
• Programming-free operation with GageScope® oscilloscope software
• Software Development Kits available for LabVIEW, MATLAB, C/C# and Linux
• Custom FPGA firmware available

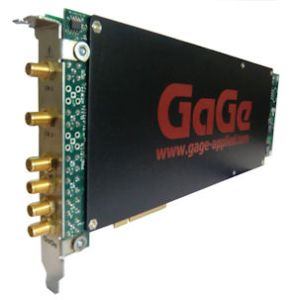

The GaGe RazorTM family of multi-channel digitizers features up to 4 channels in a single-slot PCI Express or PCI card with up to 200 MS/s sampling per channel, and up to 8 GS of on-board acquisition memory.
Combine several Razor cards for up to 32 channels in a single system.

For Realtime Applications eXpert Options:

• eXpert Data Streaming (Stream-to-Analysis)
• eXpert FIR Filtering Firmware Option

Possible transfer speeds in the PCIe slots:

PCI Express (PCIe) x8 (8 Lane) Gen-2 (Version 2.0): 3.1 GB/s
PCI Express (PCIe) x8 (8 Lane) Gen-1 (Version 1.0): 1.5 GB/s
PCI Express (PCIe) x4 4 Lane) Gen-1 (Version 1.0): 1 GB/s
PCI Express (PCIe) x1 (1 Lane) Gen-1 (Version 1.0) 245 MS/s

For Realtime Applications eXpert Options:

• eXpert Data Streaming (Stream-to-Analysis)
• eXpert FIR Filtering Firmware Option

Applications

• Radar Design and Test
• Disk Drive Testing
• Manufacturing Test
• Signal Intelligence
• Lidar Systems
• Communications
• Non-Destructive Testing
• Spectroscopy
• High-Performance Imaging
• Ultrasound Test
